Enacting Access Control Lists (ACLs) and Bucket Policies on Object Storage

Note

Linode’s Object Storage is available in our Atlanta (USA), Frankfurt (Germany), Newark (USA), and Singapore data centers. For more availability details and billing information, see the Object Storage Overview product documentation.

Caution

Object Storage is similar to a subscription service. Once enabled, you will be billed at the flat rate regardless of whether or not there are active buckets on your account. You must Cancel Object Storage to stop billing for this service.

Linode Object Storage allows users to share access to objects and buckets with other Object Storage users. There are two mechanisms for setting up sharing: Access Control Lists (ACLs), and bucket policies. These mechanisms perform similar functions: both can be used to restrict and grant access to Object Storage resources.

In this guide you learn about:

• The differences between ACLs and bucket policies
• How to use ACLs in the Cloud Manager
• How to use ACLs with s3cmd
• How to use bucket policies with s3cmd

Before You Begin

• This guide describes two ways to use ACLs to control access to buckets and bucket objects.

  • ACLs in the Linode Cloud Manager.
  • ACLs using the s3cmd command line utility to interact with Object Storage. For s3cmd installation and configuration instructions, visit our Using s3cmd with Object Storage guide.

• For the s3cmd method, you also need the canonical ID of each account you wish to grant additional permissions to.

Note

Each Linode account has a single canonical ID within Object Storage, which means that all users and Object Storage API keys on an account share the same canonical ID.

Retrieving a Canonical ID

Choose one of the following methods to determine a bucket owner’s canonical ID.

Through s3cmd

Run the following command on a bucket belonging to a different Linode customer account, replacing other-users-bucket with the name of their bucket.

s3cmd info s3://other-users-bucket

Note

The bucket referred to in this section is an arbitrary bucket on the target user’s account. It is not related to the bucket on your account that you would like to set ACLs or bucket policies on.

There are two options for running this command:

• The users you’re granting or restricting access to can run this command on one of their buckets and share their canonical ID with you, or:

• You can run this command yourself if you have use of their access tokens (you need to configure s3cmd to use their access tokens instead of your own).

The output is similar to the following:

s3://other-users-bucket/ (bucket):
Location:  default
Payer:     BucketOwner
Expiration Rule: none
Policy:    none
CORS:      none
ACL:       a0000000-000a-0000-0000-00d0ff0f0000: FULL_CONTROL

The canonical ID of the owner of the bucket is the long string of letters, dashes, and numbers found in the line labeled ACL, which in this case is a0000000-000a-0000-0000-00d0ff0f0000. If you see none as the ACL, it may indicate that your s3cmd is configured with a different region than the bucket is located within. See the Additional Configuration Options of our s3cmd guide to learn how to manually edit the s3cmd configuration.

Through curl

Alternatively, you may be able to retrieve the canonical ID by curling a bucket and retrieving the Owner ID field from the returned XML. This method is an option when both of these conditions are true:

• The bucket has objects within it and has already been set to public (with a command like s3cmd setacl s3://other-users-bucket --acl-public).
• The bucket has not been set to serve static websites.

Run the following curl command, replacing other-users-bucket with the bucket name and the cluster URL with the relevant value:

curl other-users-bucket.us-east-1.linodeobjects.com

Note

A cluster is defined as all buckets hosted by a unique URL; for example: us-east-1.linodeobjects.com, ap-south-1.linodeobjects.com, or eu-central-1.linodeobjects.com.

This results in the following output:

<ListBucketResult xmlns="http://s3.amazonaws.com/doc/2006-03-01/">
    <Name>acl-bucket-example</Name>
    <Prefix/>
    <Marker/>
    <MaxKeys>1000</MaxKeys>
    <IsTruncated>false</IsTruncated>
    <Contents>
    <Key>cpanel_marketplace.gif</Key>
    <LastModified>2019-11-20T16:52:49.946Z</LastModified>
    <ETag>"9aeafcb192a8e540e7be5b51f7249e2e"</ETag>
    <Size>961023</Size>
    <StorageClass>STANDARD</StorageClass>
    <Owner>
        <ID>a0000000-000a-0000-0000-00d0ff0f0000</ID>
        <DisplayName>a0000000-000a-0000-0000-00d0ff0f0000</DisplayName>
    </Owner>
    <Type>Normal</Type>
    </Contents>
</ListBucketResult>

In the above output, the canonical ID is a0000000-000a-0000-0000-00d0ff0f0000.

ACLs vs Bucket Policies

ACLs and bucket policies perform similar functions: both can restrict or grant access to buckets. ACLs can also restrict or grant access to individual objects, but they don’t offer as many fine-grained access modes as bucket policies.

How to Choose Between ACLs and Bucket Policies

If you can organize objects with similar permission needs into their own buckets, then it’s strongly suggested that you use bucket policies. However, if you cannot organize your objects in this fashion, ACLs are still a good option.

ACLs offer permissions with less fine-grained control than the permissions available through bucket policies. If you are looking for more granular permissions beyond read and write access, choose bucket policies over ACLs.

Additionally, bucket policies are created by applying a written bucket policy file to the bucket. This file cannot exceed 20KB in size. If you have a policy with a lengthy list of policy rules, you may want to look into ACLs instead.

Note

ACLs and bucket policies can be used at the same time. When this happens, any rule that limits access to an Object Storage resource overrides a rule that grants access. For instance, if an ACL allows a user access to a bucket, but a bucket policy denies that user access, the user can not access that bucket.

ACLs

Access Control Lists (ACLs) are a legacy method of defining access to Object Storage resources. You can apply an ACL to a bucket or to a specific object. There are two generalized modes of access: setting buckets and/or objects to be private or public. A few other more granular settings are also available; the Cloud Manager and s3cmd sections provide information on these respective settings.

ACLs in the Cloud Manager

In Cloud Manager ACLs can be controlled at both the bucket and object level. ACLs in Cloud Manager go beyond s3cmd’s ACLs and combine them with bucket policies for more granular control than just public or private.

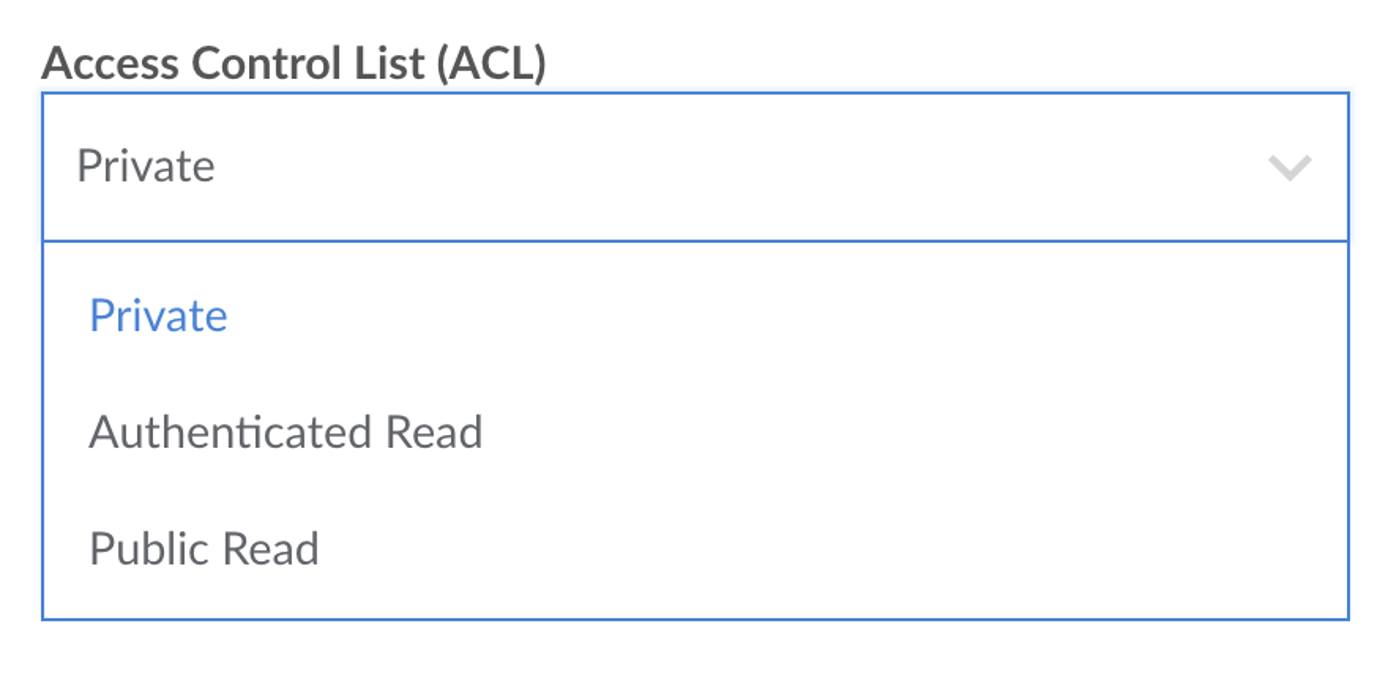

Granular Permissions for Cloud Manager

Bucket Level ACLs in Cloud Manager

Note

Existing buckets and any new bucket created in the Cloud Manager have a default ACL permission setting of Private.

1. If you have not already, log into the Linode Cloud Manager.

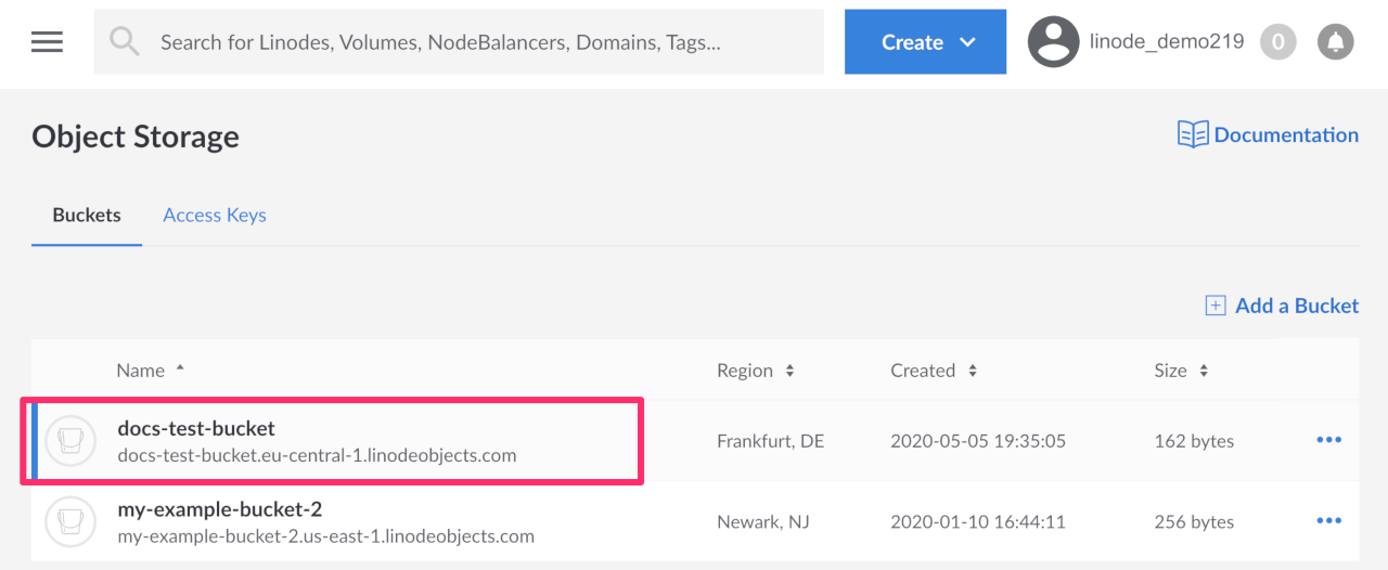

2. Click the Object Storage link in the sidebar, and then click on the bucket you wish to edit the ACLs for.

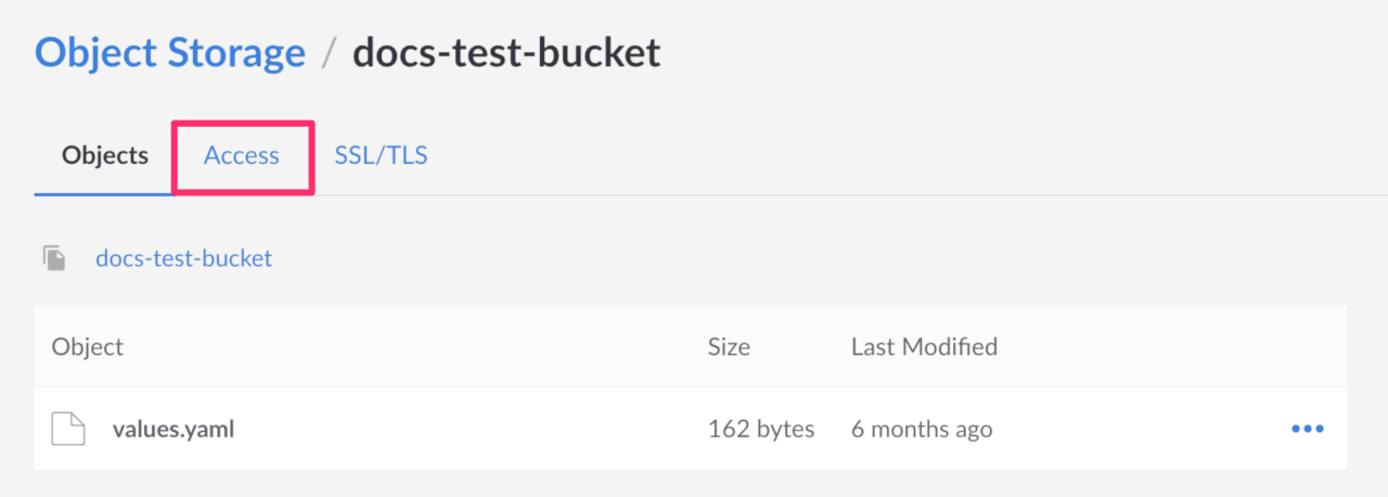

3. The Object Storage Bucket detail page appears. Click the Access tab.

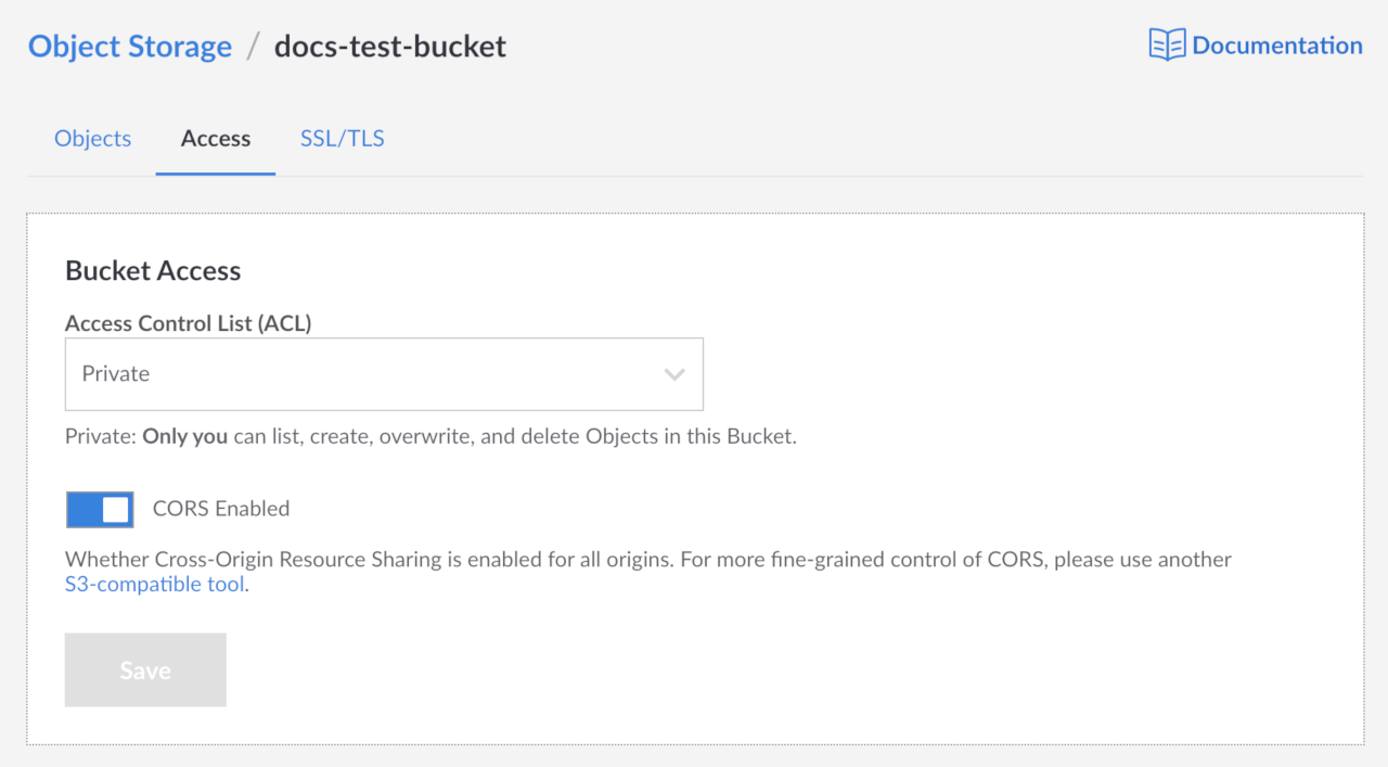

4. The Object Storage Bucket Access Page appears.

5. On this page you can select the ACL for this bucket as well as enable CORS.

   Note

   CORS is enabled by default on all existing buckets and on all new buckets.

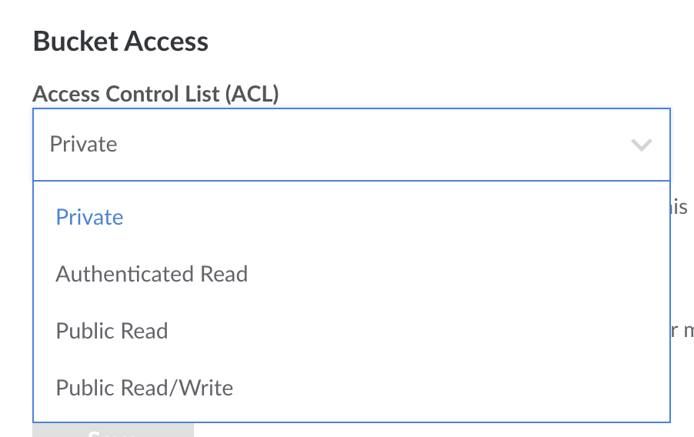

6. Select the ACL for this bucket from the dropdown menu.

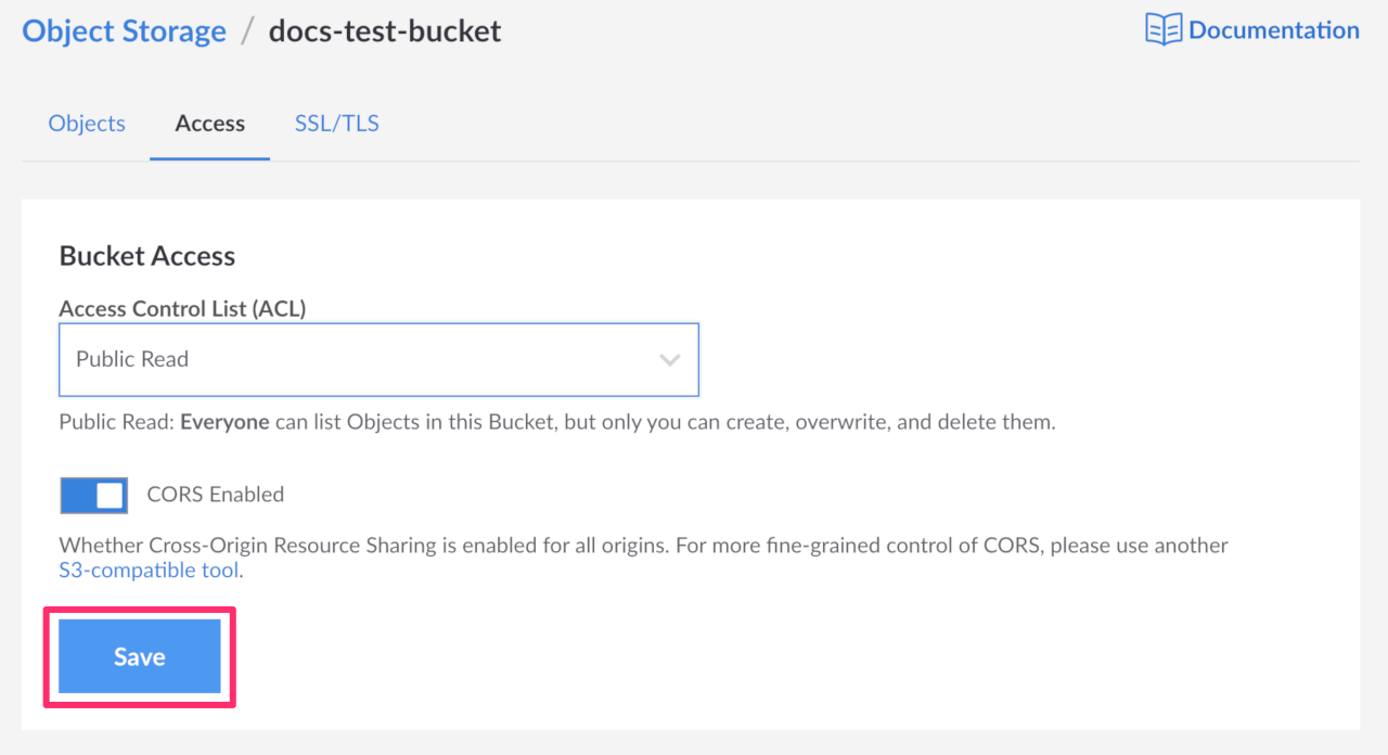

7. Click the Save button to save these settings to the bucket.

Object Level ACLs in Cloud Manager

Note

Existing objects and any new objects created in the Cloud Manager have a default ACL permission setting of Private.

1. If you have not already, log into the Linode Cloud Manager.

2. Click the Object Storage link in the sidebar, and then click on the bucket that holds the objects that you wish to edit the ACLs for.

3. The Object Storage Bucket detail page appears and displays all the objects in your bucket.

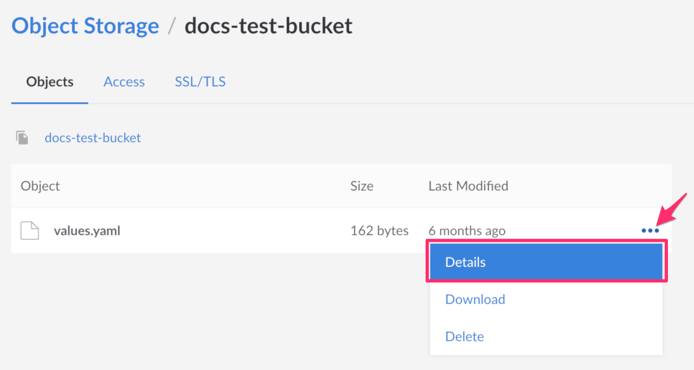

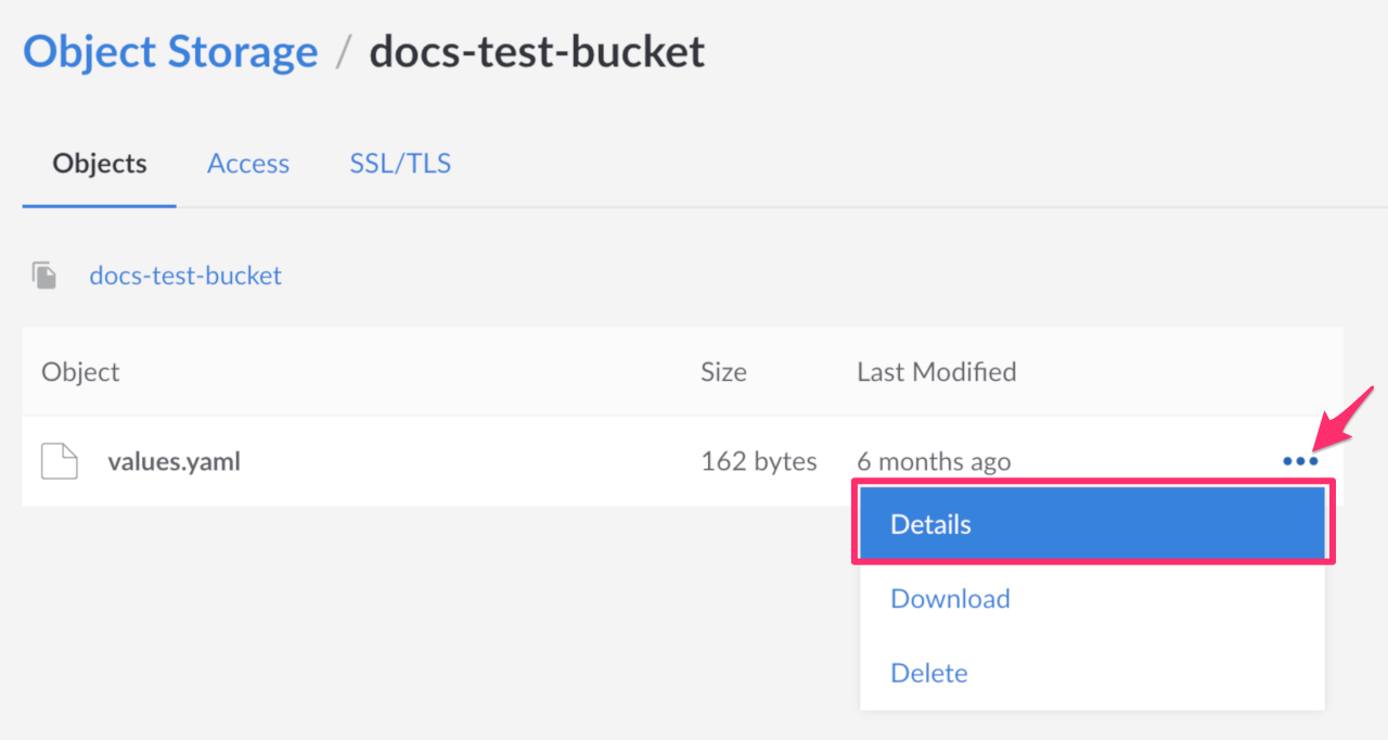

4. Next to the object you wish to edit the ACL settings for, click the more options ellipsis and select Details from the drop down menu that appears.

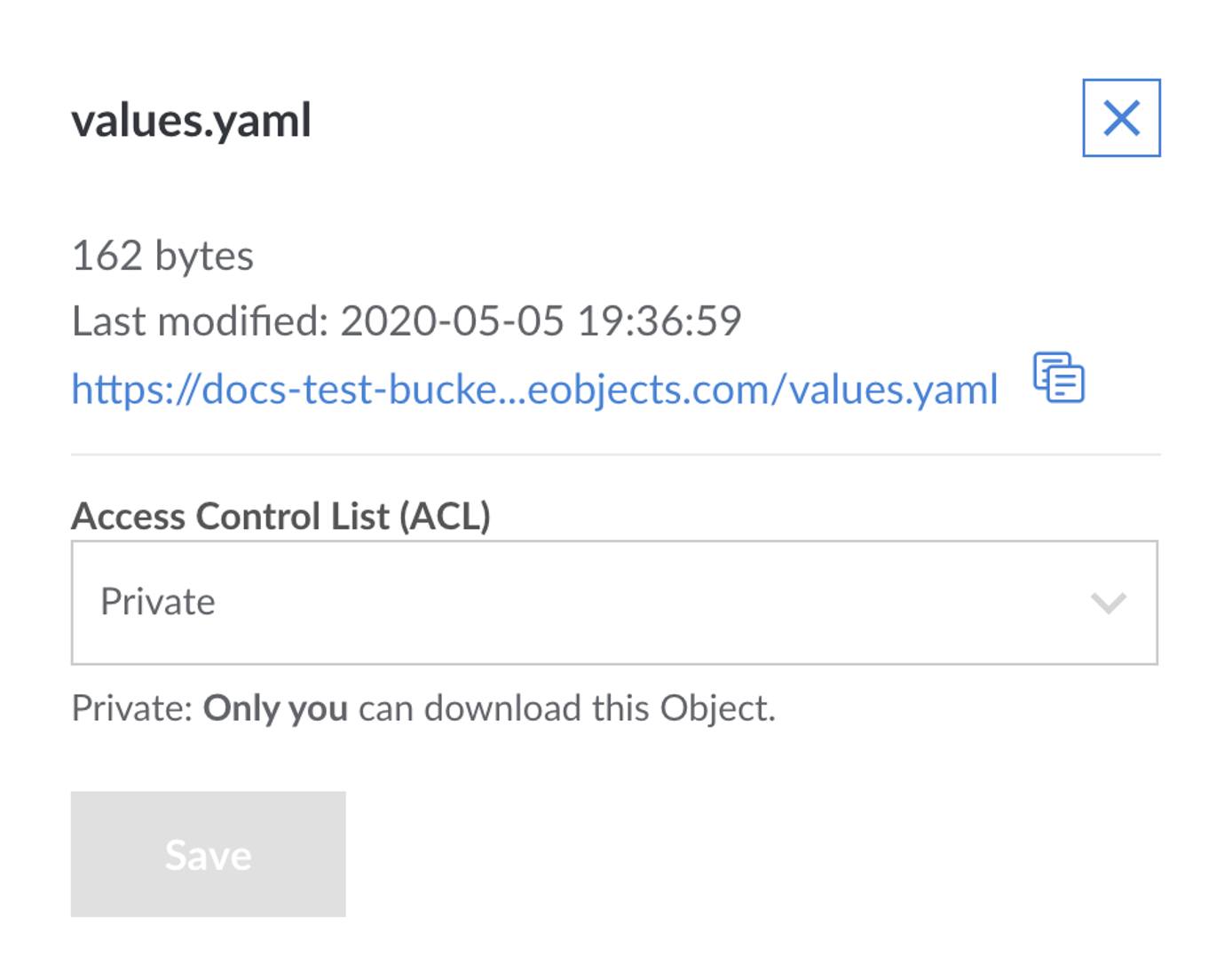

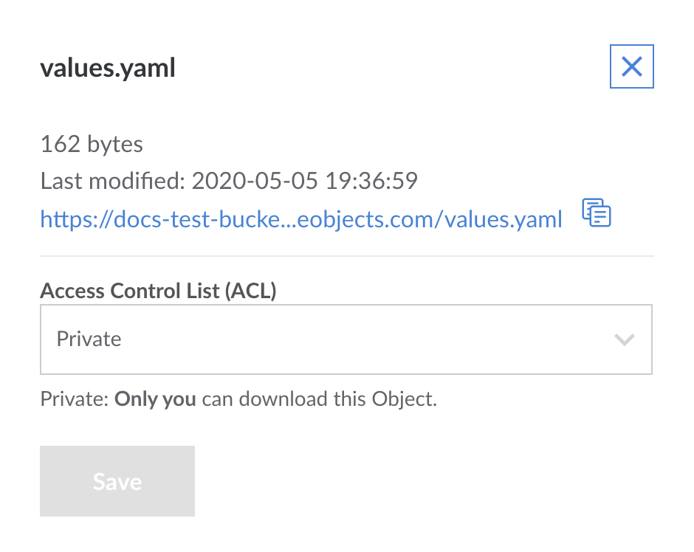

5. The Object ACL panel opens.

6. Select the ACL you wish to set for this object from the dropdown menu.

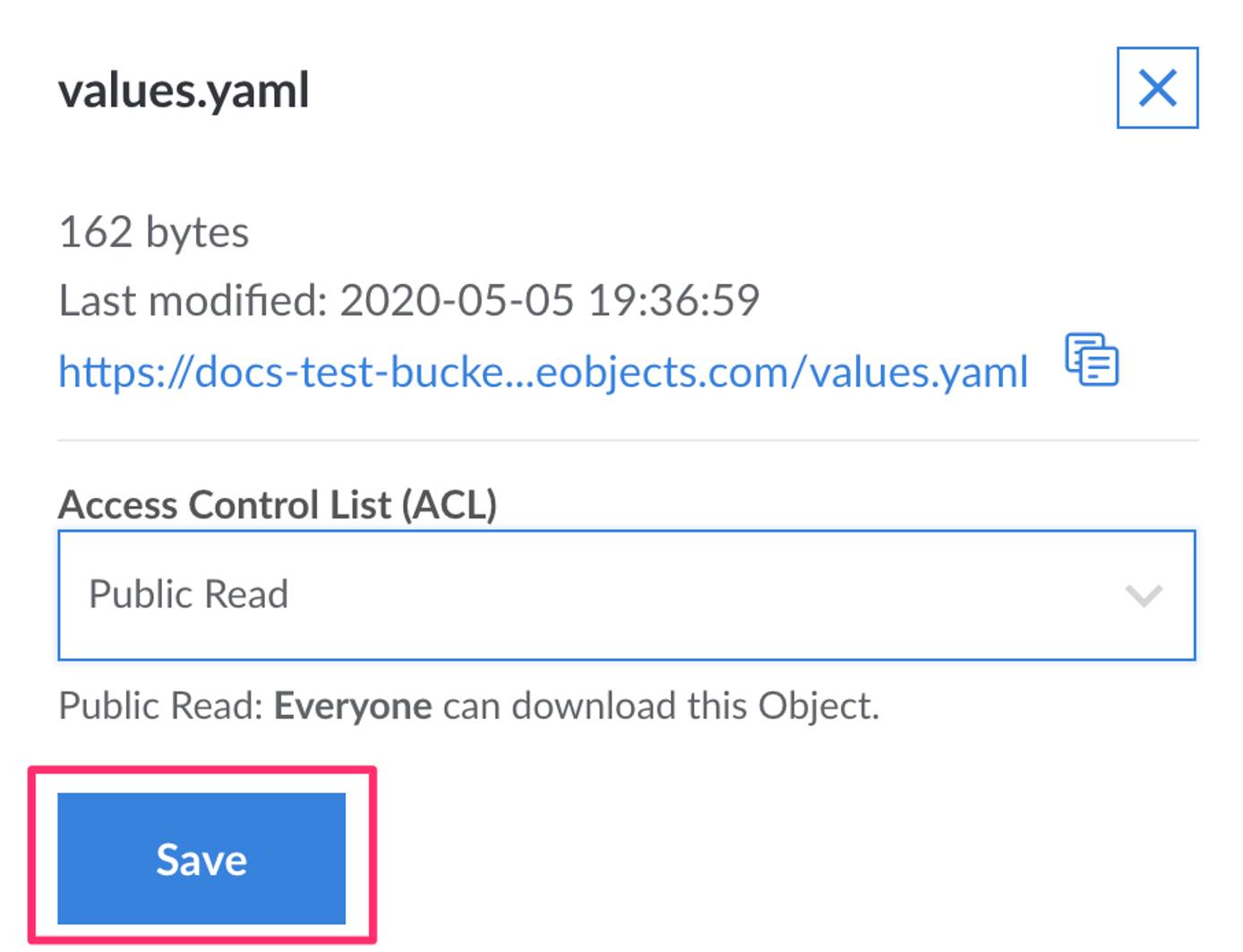

7. Click the Save button. The panel closes and the ACL is applied to the object.

ACLs with s3cmd

With s3cmd, you can set a bucket to be public with the setacl command and the --acl-public flag:

s3cmd setacl s3://acl-example --acl-public

This causes the bucket and its contents to be downloadable over the public Internet.

To set an object or bucket to private, you can use the setacl command and the --acl-private flag:

s3cmd setacl s3://acl-example --acl-private

This prevents users from accessing the bucket’s contents over the public Internet.

Granular Permissions for s3cmd

The more granular permissions are:

Setting a permission: To apply granular permissions for a specific user with s3cmd, use the following setacl command with the --acl-grant flag:

s3cmd setacl s3://acl-example --acl-grant=PERMISSION:CANONICAL_ID

Substitute acl-example with the name of the bucket (and the object, if necessary), PERMISSION with a permission from the above table, and CANONICAL_ID with the canonical ID of the user to which you would like to grant permissions.

Revoking a permission: To revoke a specific permission, you can use the setacl command with the acl-revoke flag:

s3cmd setacl s3://acl-example --acl-revoke=PERMISSION:CANONICAL_ID

Substitute the bucket name (and optional object), PERMISSION, and CANONICAL_ID with your relevant values.

View current ACLs: To view the current ACLs applied to a bucket or object, use the info command, replacing acl-example with the name of your bucket (and object, if necessary):

s3cmd info s3://acl-example

You should see output like the following:

s3://acl-bucket-example/ (bucket):
   Location:  default
   Payer:     BucketOwner
   Expiration Rule: none
   Policy:    none
   CORS:      b'<CORSConfiguration xmlns="http://s3.amazonaws.com/doc/2006-03-01/"><CORSRule><AllowedMethod>GET</AllowedMethod><AllowedMethod>PUT</AllowedMethod><AllowedMethod>DELETE</AllowedMethod><AllowedMethod>HEAD</AllowedMethod><AllowedMethod>POST</AllowedMethod><AllowedOrigin>*</AllowedOrigin><AllowedHeader>*</AllowedHeader></CORSRule></CORSConfiguration>'
   ACL:       *anon*: READ
   ACL:       a0000000-000a-0000-0000-00d0ff0f0000: FULL_CONTROL
   URL:       http://us-east-1.linodeobjects.com/acl-example/

Note

The owner of the bucket always has the full_control permission.

Note

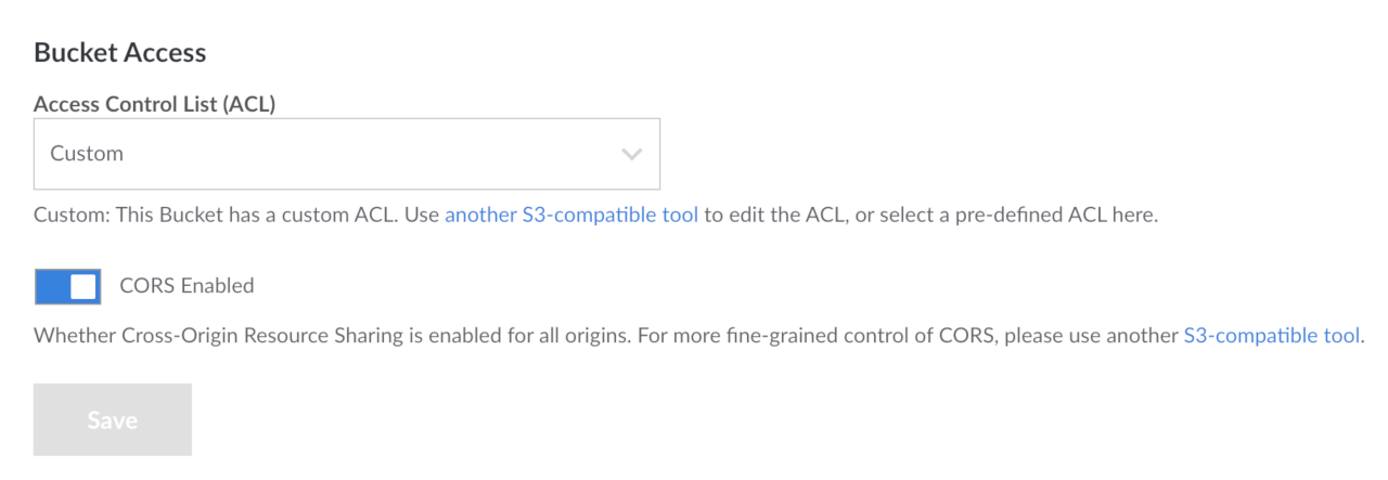

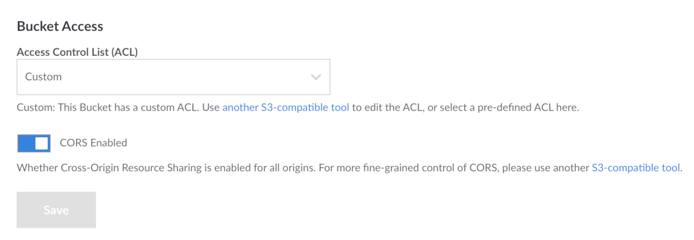

If you set an ACL that does not map to an ACL in the Cloud Manager, the Cloud Manager displays this as Custom.

Bucket Policies with s3cmd

Bucket policies can offer finer control over the types of permissions you can grant to a user.

Caution

In the examples below, access to all objects within a bucket are defined with a wildcard *. While these resources can be defined to target the bucket resource itself by removing the /* where the resource is defined. Creating a policy with this rule can cause the bucket to become inaccessible to the Linode Cloud Manager, API, and CLI.

Basic Access Policy

Below is an example bucket policy written in JSON:

File: bucket_policy_example.json

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

{ "Version": "2012-10-17", "Statement": [{ "Effect": "Allow", "Principal": { "AWS": [ "arn:aws:iam:::user/a0000000-000a-0000-0000-00d0ff0f0000" ] }, "Action": [ "s3:PutObject", "s3:GetObject", "s3:ListBucket" ], "Resource": [ "arn:aws:s3:::bucket-policy-example/*" ] }] }

This policy allows the user with the canonical ID a0000000-000a-0000-0000-00d0ff0f0000, known here as the “principal”, to interact with the bucket, known as the “resource”. The “resource” that is listed (bucket-policy-example) is the only bucket the user has access to.

Note

The principal (a.k.a. the user) must have the prefix of arn:aws:iam:::user/, and the resource (a.k.a. the bucket) must have the prefix of arn:aws:s3:::.

The permissions are specified in the Action array. For the current example, these are:

• s3:PutObject: The ability to upload objects to a bucket

• s3:GetObject: The ability to retrieve objects from a bucket

• s3:ListBucket: The ability to list the contents of the bucket

  Note

  For a full list of of available actions, visit the Ceph bucket policy documentation.

The Action and Principal.AWS fields of the bucket policy are arrays. Therefore, you can easily add additional users and permissions to the bucket policy, separating them by a comma. To grant permissions to all users, you can supply a wildcard (*) to the Principal.AWS field.

Subdirectory Access Policy

You can also define a finer level of control over the level of access to your bucket’s directory structure using policy rules.

File: bucket-policy-directories.json

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29

{ "Version": "2012-10-17", "Statement": [ { "Effect": "Allow", "Principal": { "AWS": "arn:aws:iam:::user/a0000000-000a-0000-0000-00d0ff0f0000" }, "Action": [ "s3:ListBucket" ], "Resource": [ "arn:aws:s3:::*" ] }, { "Effect": "Allow", "Principal": { "AWS": "arn:aws:iam:::user/a0000000-000a-0000-0000-00d0ff0f0000" }, "Action": [ "s3:GetObject" ], "Resource": [ "arn:aws:s3:::bucket-policy-example/test/*" ] } ] }

This example shows how you can grant read-only access to a user by allowing them to list buckets and get objects from the bucket only from the test directory. However, they can not perform any other actions.

Denying Access by IP Address

If you wanted to deny all access to a resource and whitelist by IP address, you can change the Effect field from Allow to Deny and supply an IP address in a condition.

File: bucket-policy-deny.json

1 2 3 4 5 6 7 8 9 10 11 12 13 14

{ "Version": "2012-10-17", "Statement": [{ "Effect": "Deny", "Principal": "*", "Action": "s3:*", "Resource": "arn:aws:s3:::bucket-policy-example/*", "Condition": { "NotIpAddress": { "aws:SourceIp": "192.0.2.0" } } }] }

Combining Rules

Only one policy file can be enabled at a time. Therefore, if you wanted to enact several of the above rules together, instead of enabling them one at a time, you would need to combine them into a single file with each rule listed as items in the Statements array.

File: bucket-policy-combo.json

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54

{ "Version": "2012-10-17", "Statement": [{ "Effect": "Allow", "Principal": { "AWS": [ "arn:aws:iam:::user/a0000000-000a-0000-0000-00d0ff0f0000" ] }, "Action": [ "s3:PutObject", "s3:GetObject", "s3:ListBucket" ], "Resource": [ "arn:aws:s3:::bucket-policy-example/*" ] }, { "Effect": "Allow", "Principal": { "AWS": "arn:aws:iam:::user/a0000000-000a-0000-0000-00d0ff0f0000" }, "Action": [ "s3:ListBucket" ], "Resource": [ "arn:aws:s3:::*" ] }, { "Effect": "Allow", "Principal": { "AWS": "arn:aws:iam:::user/a0000000-000a-0000-0000-00d0ff0f0000" }, "Action": [ "s3:GetObject" ], "Resource": [ "arn:aws:s3:::bucket-policy-example/test/*" ] }, { "Effect": "Deny", "Principal": "*", "Action": "s3:*", "Resource": "arn:aws:s3:::bucket-policy-example/*", "Condition": { "NotIpAddress": { "aws:SourceIp": "192.0.2.0" } } }] }

Enable a Bucket Policy

To enable the bucket policy, use the setpolicy s3cmd command, supplying the filename of the bucket policy as the first argument, and the S3 bucket address as the second argument:

s3cmd setpolicy bucket_policy_example.json s3://bucket-policy-example

To ensure that it has been applied correctly, you can use the info command:

s3cmd info s3://bucket-policy-example

You should see output like the following:

s3://bucket-policy-example/ (bucket):
   Location:  default
   Payer:     BucketOwner
   Expiration Rule: none
   Policy:    b'{\n  "Version": "2012-10-17",\n  "Statement": [{\n    "Effect": "Allow",\n    "Principal": {"AWS": ["arn:aws:iam:::user/a0000000-000a-0000-0000-00d0ff0f0000"]},\n    "Action": ["s3:PutObject","s3:GetObject","s3:ListBucket"],\n    "Resource": [\n      "arn:aws:s3:::bucket-policy-example/*"\n    ]\n  }]\n}'
   CORS:      none
   ACL:       a0000000-000a-0000-0000-00d0ff0f0000: FULL_CONTROL

Note

The policy is visible in the output.

More Information

You may wish to consult the following resources for additional information on this topic. While these are provided in the hope that they will be useful, please note that we cannot vouch for the accuracy or timeliness of externally hosted materials.

• Ceph Bucket Policy Supported Actions
